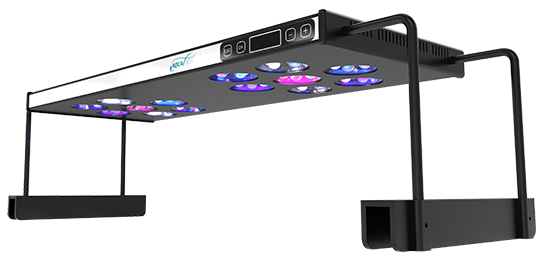

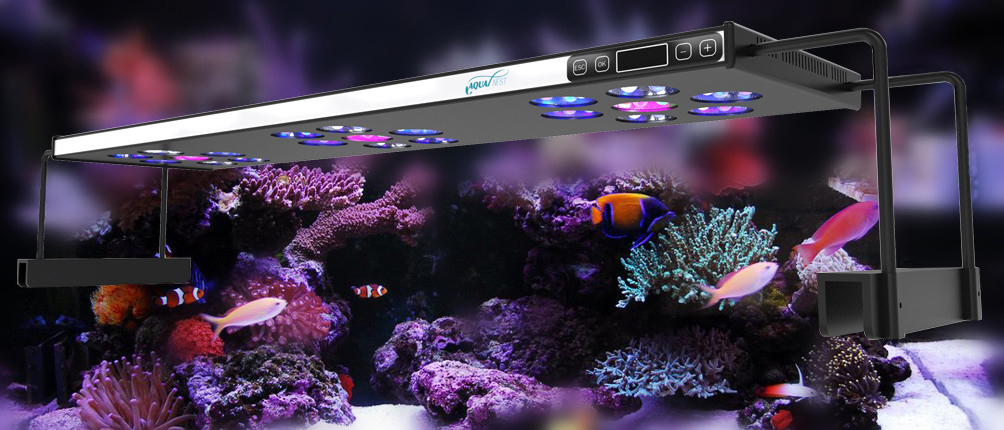

 The AQUA MAX with its ultra-slim design, in combination with a perfectly balanced light spectrum is the ideal lighting solution for your aquarium. Latest Wi-Fi technology allows for convenient and easy control by your smartphone or tablet. The free AQUANest app gives you almost unlimited possibilities by the 6-channel controller to adjust the lighting, power and colour variation perfectly to the needs of your animals.












  • Unique 4 in 1 high transmittance optical lens .

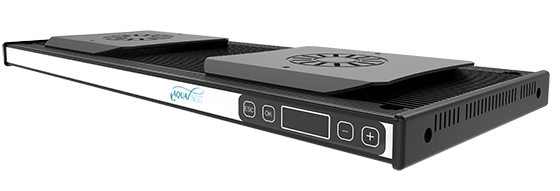

  • Full aluminum housing (without fan cover)
  • Ultra Slim and modular design
  • UIntelligent temperature control fan,environmental protection and energy saving.
  • Wi-fi control and free IOS/Android APP available

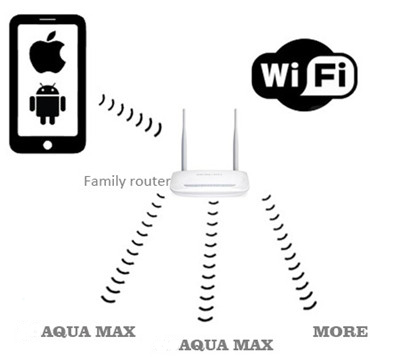

Wi-Fi and Free APP



     Invisible Wi-Fi design, do not need extra Wi-Fi box, you can achieve to controlthe ASAQUA MAX easily, allowing you to enjoy the amazing aquarium life from MAX ASAQUA system.























AQUA MAX M30/M60/M90

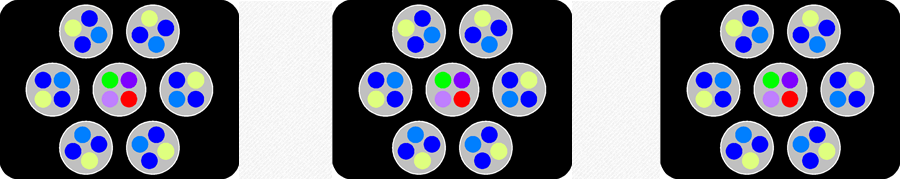

 layout :





 MAX M30

CH.1 White 3W 6 pcs.




CH.4 UV + Violet 3W 1 pcs.+1 pcs.
CH.2 Royal blue 3W 12 pcs. CH.5 Green 3W 1 pcs.
CH.3 Blue 3W 6 pcs. CH.6 Red 3W 1 pcs.

 MAX M60

CH.1 White 3W 12 pcs.




CH.4 UV + Violet 3W 2 pcs.+2 pcs.
CH.2 Royal blue 3W 24 pcs. CH.5 Green 3W 2 pcs.
CH.3 Blue 3W 12 pcs. CH.6 Red 3W 2 pcs.

 MAX M90

CH.1 White 3W 18 pcs.




CH.4 UV + Violet 3W 3 pcs.+3 pcs.
CH.2 Royal blue 3W 36 pcs. CH.5 Green 3W 3 pcs.
CH.3 Blue 3W 18 pcs. CH.6 Red 3W 3 pcs.

MAX M120

CH.1 White 3W 24 pcs.




CH.4 UV + Violet 3W 4 pcs.+4 pcs.
CH.2 Royal blue 3W 48 pcs. CH.5 Green 3W 4 pcs.
CH.3 Blue 3W 24 pcs. CH.6 Red 3W 4 pcs.

Spectrum of each channel:



AQUA MXA     Channel A   White AQUA MXA     Channel B   RoyalBlue AQUA MXA     Channel C   Blue
AQUA MXA     Channel D   Violet Epileds (only) AQUA MXA     Channel E   Green AQUA MXA     Channel F   Red

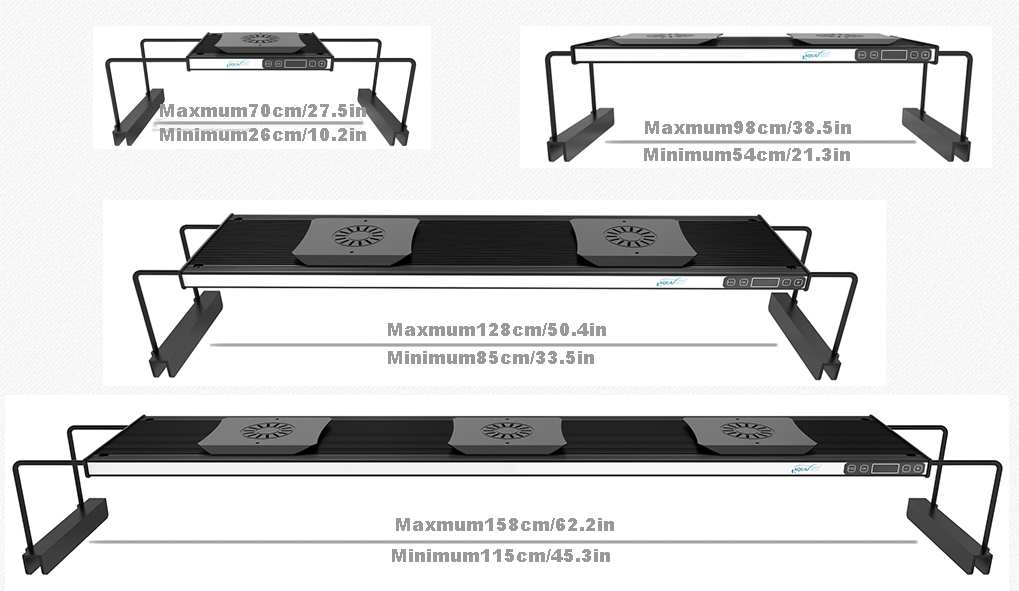

Comes in different sizes



The AQUA MAX comes in 4 different models and sizes, suitable for aquarium ranges from 26cm (10in) all the way up to 158cm (62.2in).

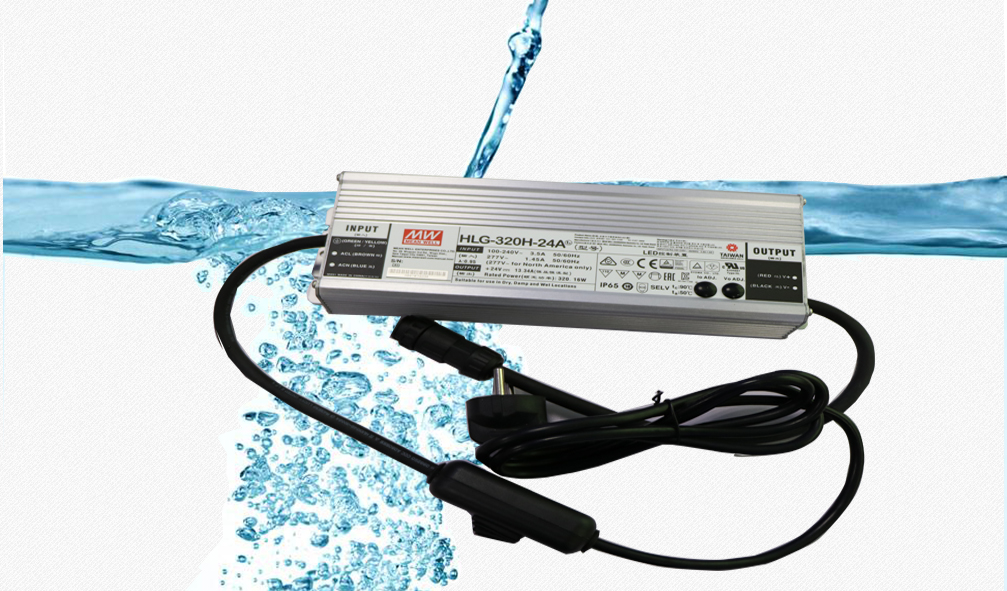

 Power Adapter

The AQUA MAX series are using MeanWell power adapter .






Technical data



MAX M30

Total Led wattage max. 84 watts Number of light colours 7
Dimensions (housing) app. 235 x 205 x 23 mm Fitting for Aquariums with length app. 300 - 600 mm
Weight app. 2,2 kg Lighting area max. app. 600 x 600 mm
Number of light channels 6 Total lumen

app. 19500 lm

MAX M60

Total Led wattage max. 168 watts                . Number of light colours 7
Dimensions (housing) app. 505 x 205 x 23 mm Fitting for Aquariums with length app. 600 - 1100 mm
Weight app. 4,9 kg Lighting area max. app. 900 x 600 mm
Number of light channels 6 Total lumen app. 39000 lm

MAX M90

Total Led wattage max. 252 watts Number of light colours 7
Dimensions (housing) app. 815 x 205 x 23 mm Fitting for Aquariums with length app. 850 - 1250 mm
Weight app. 6,8 kg Lighting area max. app. 1200 x 600 mm
Number of light channels 6 Total lumen app. 51100 lm

MAX M120

Total Led wattage max. 336 watts                . Number of light colours 7
Dimensions (housing) app. 1105 x 205 x 23 mm Fitting for Aquariums with length app. 850 - 1250 mm
Weight app. 8,9 kg Lighting area max. app. 1500 x 600 mm
Number of light channels 6 Total lumen app. 69700 lm
